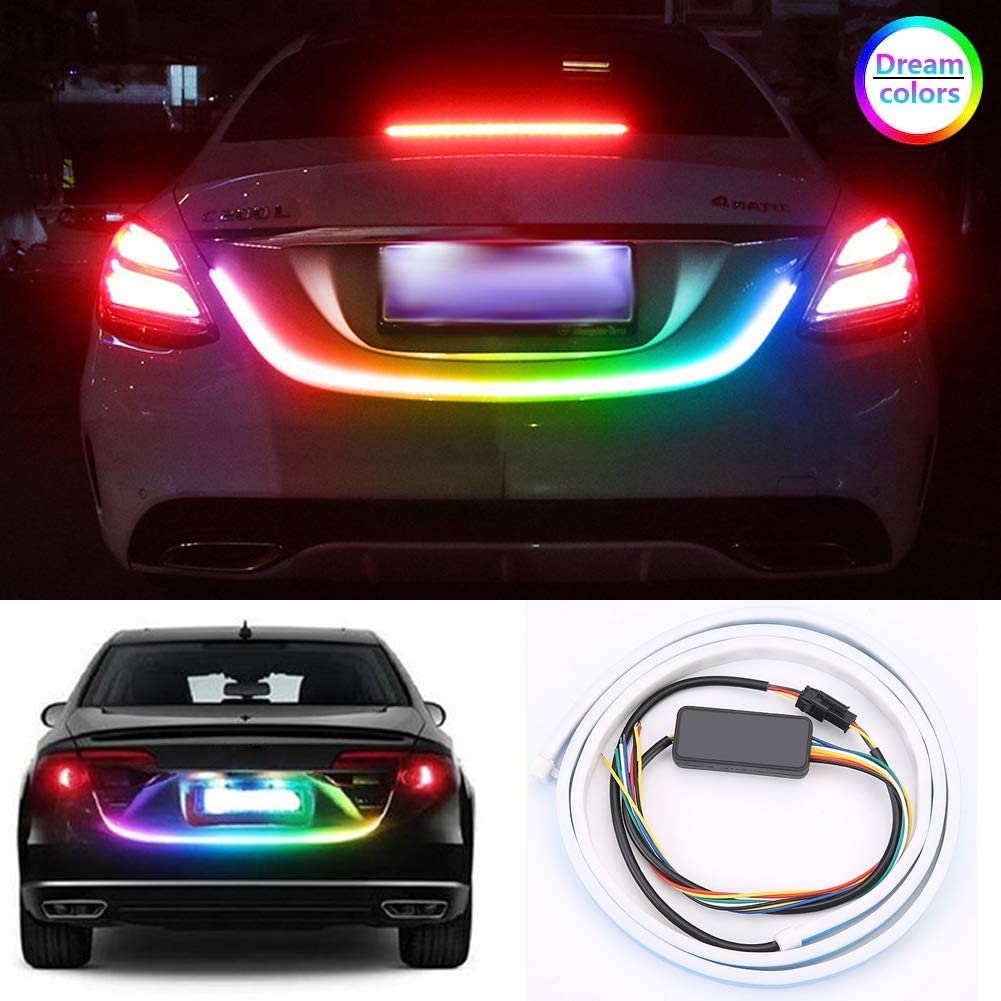

Specification:
LED light strip dimension: 48inch
LED chips: RGB SMD5050
Colors: Dream color
Voltage: DC12V
Waterproof: IP68
Wiring:
1. Red wire“+”: Connect the positive pole or ACC wire to provide 12V power supply for the product;
2. Black wire“-”: Connect to the negative pole, and the default is blue light when driving ice; 3. Yellow line L: Connect to the left turning line.
When turning left, bright yellow light flowing from right to left; (When emergency flashers, yellow light branches from the middle and flowing to left and right)
4. Yellow line R: Connect to the right turning line.
5. Blue line“+”: Connect to the brake line. The light will be red when braking, (Flash 3 times and then red light);
6. White line“+”: Connect to the reversing line, the white light is always on when reversing;
7. Green line“+”: When connected to ACC, the driving mode is chasing dream color. If not connected is ice-blue. (Two driving modes are available, ice blue or dream colors)
